Classification of Fans by Structural Morphology (Airflow Direction)

In thermal management engineering, cooling fans are fundamentally categorized into four distinct types based on their airflow inlet/outlet geometry and impeller kinematics: "Axial-Flow", "Centrifugal" (with its subtype, the "Blower/Turbo"), and "Cross-Flow" (also known as Tangential/Transverse-Flow). Each configuration exhibits unique aerodynamic characteristics, pressure-flow curves, and spatial footprints, making them suitable for specific equipment enclosures and system impedance profiles.

1. Axial-Flow Fan
The axial-flow fan draws air in axially and discharges it in the same axial direction, with the airflow remaining parallel to the rotational shaft axis. This collinear path facilitates high volumetric flow rates (high CFM) at relatively low static pressure. Axial fans are characterized by their broad size availability, straightforward mounting mechanisms, and support for value-added features such as PWM speed control, tachometer feedback, conformal coating (moisture resistance), and over-current protection. **Typical Application:** Computer chassis exhaust, server racks, telecom cabinets, and auxiliary cooling in new energy power electronics.
**Engineering Caveat:** Their performance degrades sharply when confronted with high system impedance, such as dense dust filters or fine-pitch heat sinks.

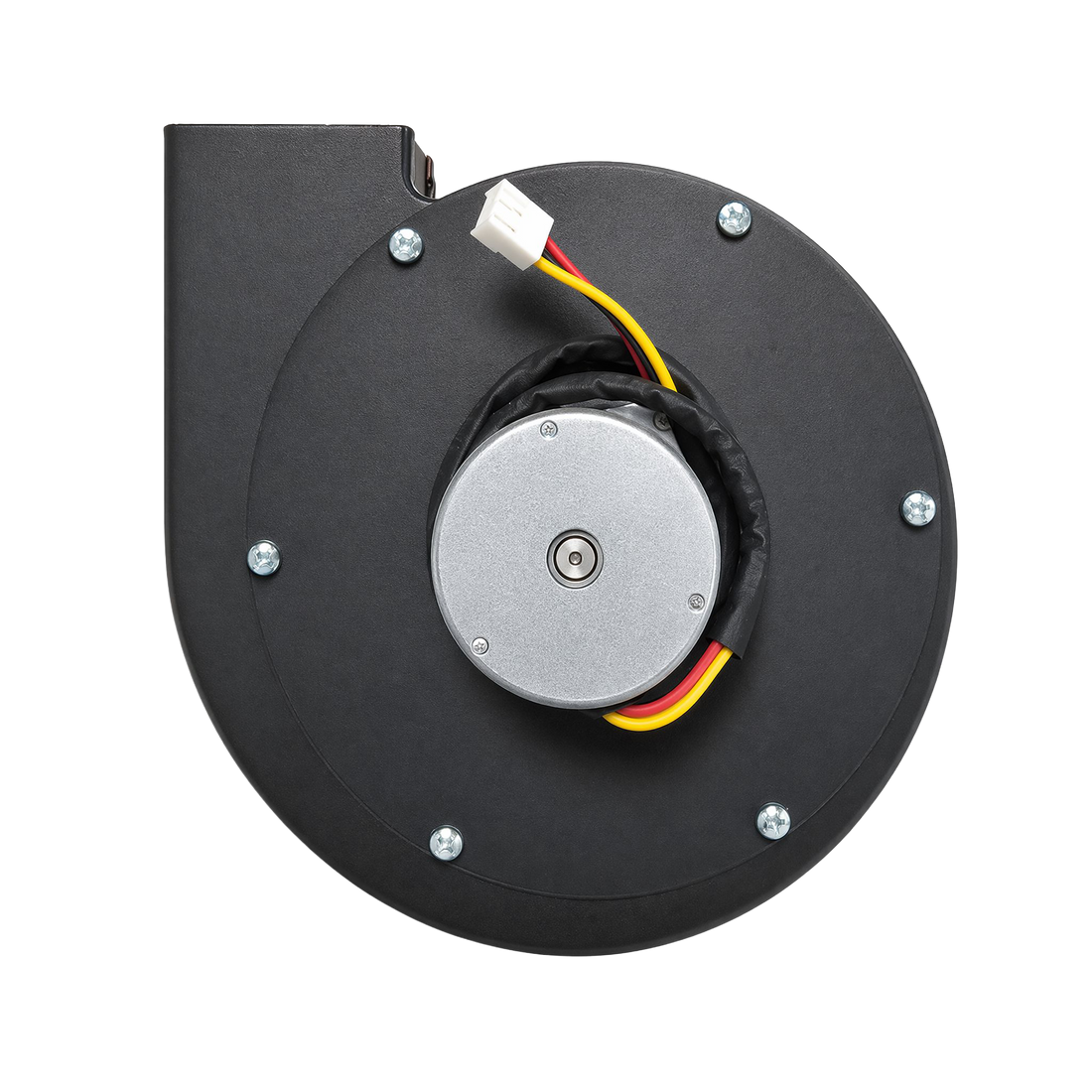

2. Blower (Turbo/Scroll Centrifugal Fan)
Often colloquially termed a "turbo blower" due to its snail-like volute casing, this variant operates on the centrifugal principle but with a distinct directional conversion. Air enters axially through the center of the impeller (centered on the planar face), is accelerated radially outward by the rotating blades via centrifugal force, and is then collected and discharged through a single tangential outlet defined by the volute geometry. The resultant inlet and outlet are oriented at "90 degrees" to each other.
Distinctive Traits: Compact z-height (low profile), moderate noise floor, and extended operational longevity. It supports intelligent control interfaces as well.
Typical Application: Notebook computers, projectors, and slimline 1U servers where lateral exhaust is mandatory.
Engineering Caveat: While it generates higher static pressure than axial fans, its overall flow rate is constricted by the narrow nozzle exit.

3. Centrifugal (Open/Unhoused Radial Fan)
Strictly speaking, the true centrifugal fan (without an integrated volute) features a fixed back-plate mounting structure. During operation, ambient air is ingested from the central inlet on the frontal face, passes through the rotating impeller, and is expelled radially outward in a 360° circumferential pattern under centrifugal acceleration. This creates a right-angle airflow transition (axial-in, radial-out). Visually, this type offers superior system integration, as it is typically designed to mate directly with a custom-built volute cavity or diffuser ring incorporated into the equipment's chassis, rather than having a self-contained housing.
Typical Application: Large HVAC refrigeration systems, high-end rackmount enclosures, 3D printers, air purifiers, massive ventilation walls, and industrial air-curtain systems.
Customization: Supports waterproofing (IP rating), locked-rotor protection, analog voltage/FG feedback, and speed profiling. Power supply can be EC (Electronically Commutated) for high-power AC mains or traditional DC for small-scale devices.
Engineering Caveat: This type is critically dependent on the clearance gap between the impeller and the equipment's integrated housing. Excessive clearance induces severe recirculation vortices, causing a dramatic efficiency drop (often >30%).

4. Cross-Flow (Tangential/Transverse-Flow Fan)
The cross-flow fan is distinguished by its elongated, cylindrical appearance. The motor is housed on one lateral end, while the impeller consists of a long, drum-like rotor with multiple forward-curved blades uniformly distributed and fixed along the main shaft. In cross-section, the fan features two closed sides: one side serves as the inlet, the other as the outlet. The motor drives the impeller to rotate, with airflow entering and exiting at a 90-degree angle to each other. Critically, the outlet flow is dispersed as a wide, uniform "sheet" or "curtain" of air across the entire length of the fan.
Typical Application: Wall-mounted air conditioners (indoor units), commercial air curtains, and rectangular LED heatsink assemblies.
